商品の詳細:
お支払配送条件:
|
| DIMENSION サイズ: | L1200/1400×W280×H1000mm | 材料: | 304ステンレス鋼、（または注文の316） |
|---|---|---|---|
| 運輸速度: | 25~30人/分 | ODM/OEM: | カスタムロゴ |
| 電源: | 110~240ボルト（AC） | 方向性: | 一方通行、調節可能なBi方向 |
| 経路幅: | <600mm> | Working environment: | Indoor / Outdoor ( Shelter),indoor |
| 保証: | 12ヶ月 | Usage: | Factory,Office,Hotel,Library,Metro Station,ect. |

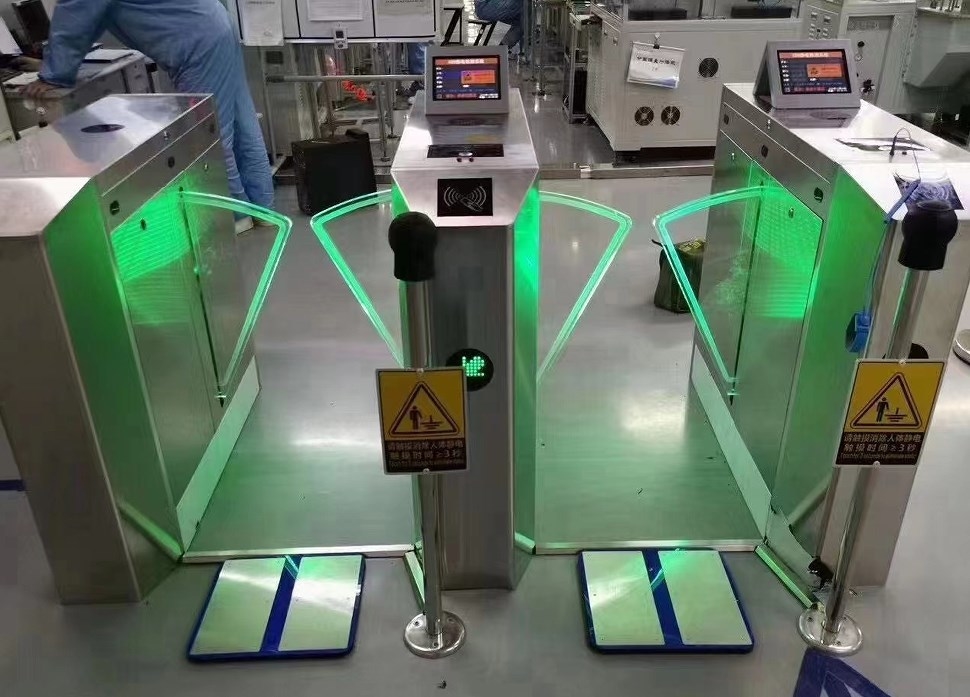

8 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband
Introduction Of ESD Turnstile Gate System
1. Excetp esd system,the gate can be integrated with any kind of access controller system (covering: face recognition terminal, QR code scanner, RFID device, Push button, Fingerprint and Bio-metric device).
2. Use anti-passback movement, when people turn the three arms up to around 60 degrees then arms can no longer turn back.
3. Use hydraulic shock absorb, can effectively control the speed of the turntable, and no sound when rotation. reduce the vibration as well.
4. Type: full automatic ( arms auto on work status when power on); Semi-automatic; manual.
5. The body is made of brushed stainless steel which is robust, rigid, anti-rust, and durable.
6. Turnstile system Can equip higher configuration for areas with high traffic, such as airport/railway/metro/bus/park entrance or exit.
-Low noise, no mechanical impact
-Single directional or Bi-directional
-High operation with quick response
-Excellent design, with high quality
-Robust, rigid , anti-rust and durable
-Smoothly working system
-Self-test function
Added function
-Counting function available (counter)
-Information display option (LCD display screen)
-Audible sound prompt
-Invalid entering alarm
-Auto-lift-arm function (full automatically type)
Special Function Of ESD Turnstile Gate System
1. counter: which records the pass times.
2. Coin or Token collector;
3. Card collector.
| Optimal flow rate | 30 persons/min (open), 25-30 persons/min (closed) |
| Cabinet dimension | 1200(L)* 280(W)* 1000(H)MM |
| Open type | push button/ access control |
| Passing direction | single in/out or Bidirectional |
| Working temperature | -15°C +75°C |
| communication with computer | standard RS485, TCP/IP |
| Reset time after break down | default 10s,can be changed to fit different demands |
♦ Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
♦ Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
Design Of ESD Turnstile Gate System

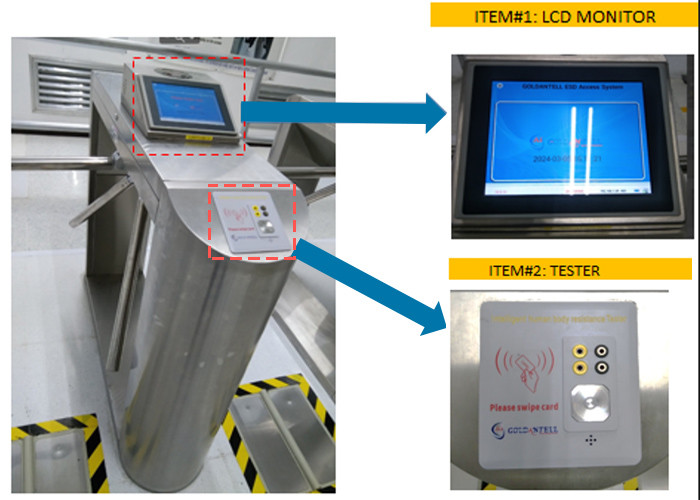

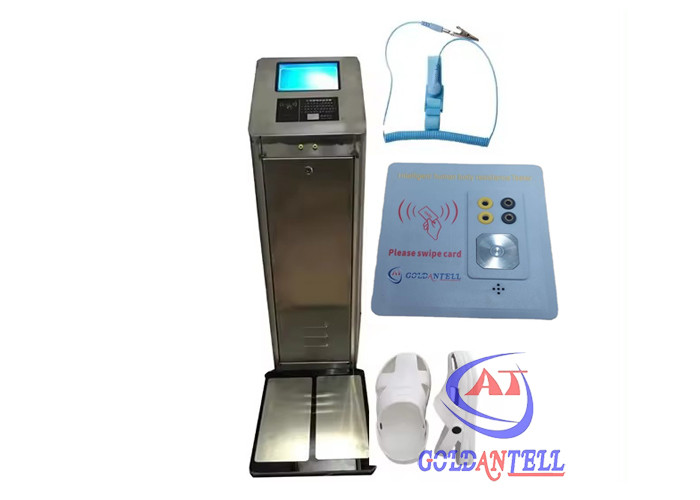

ESD tester system (which could be mount on turnstile gate) has 4 modes to choose from
FAQ Of Turnstile System
Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q. What is your sample policy?
A: We offer samples if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q. Do you test all your goods before delivery?
A: Yes, we have the 100% test before delivery, and will provide a testing video for your confirmation before shipment.
Why Choose Our ESD System Turnstile Gates?
- Custom Solutions – Tailored to your security and design needs.
- 24/7 Support – Installation, maintenance, and troubleshooting.
- Competitive Pricing – Cost-effective without compromising quality.
Contact us today for a free consultation.
This version is clean, professional, and ready for direct use in brochures, websites, or presentations. Let me know if you need any further refinements.
