シェンゼン・ゴールドテル・テクノロジー・コー・リミテッド
品質は私たちの文化です!
|
商品の詳細:
お支払配送条件:
|
| 通過幅: | 550mm-600mm | パス速度: | 30-40人/分 |
|---|---|---|---|
| 電源: | 110~240ボルト（AC） | 最大消費電力: | 60W |
| 頻度: | 50~60のHz | IP保護: | IP54 |
| 作業温度: | -15〜75°C | バーを除く寸法: | 1200x300x1000 mm |
| 正味重量: | 150 kg | 住宅資料: | 1.5-2mm、304＃ステンレス鋼 |
| ドライブモーター: | DCブラシレスモーター | 入力信号: | dc12v/dry/contact/rs485/rs232/remote |
| 相対湿度: | 自由な≤95%の凝固 | MCBF: | 2,500,000サイクル |
| ESD試験範囲: | 0.01-1000mΩ（靴）、0.1-35mΩ（リストストラップ） | ||

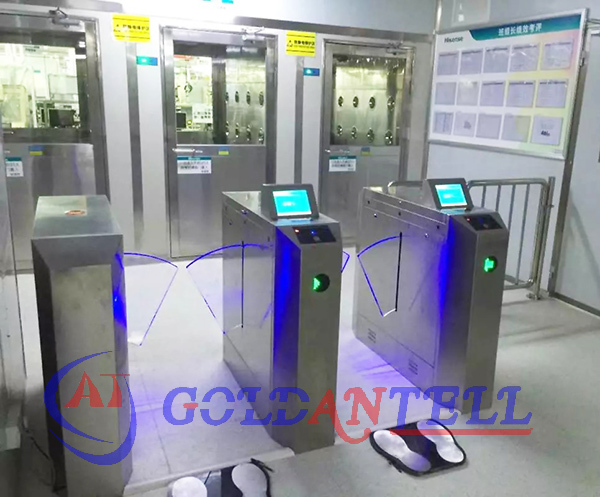

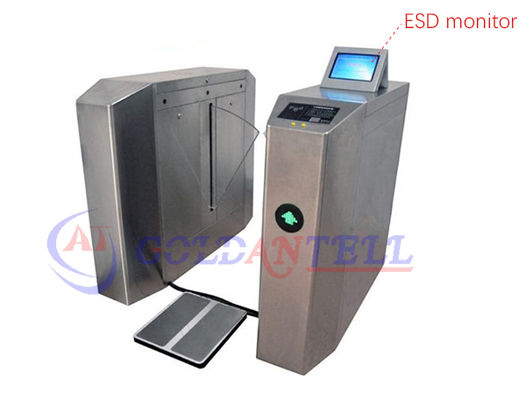

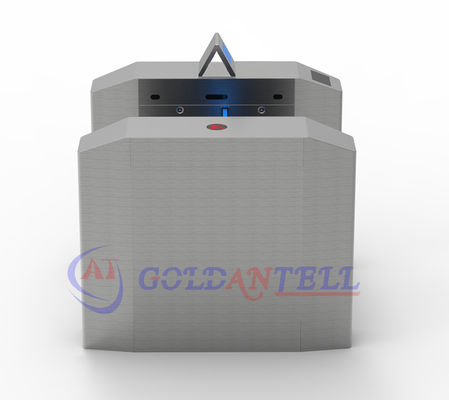

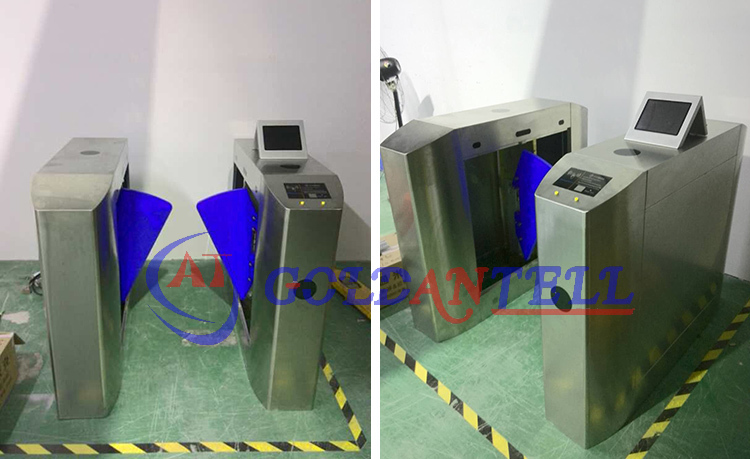

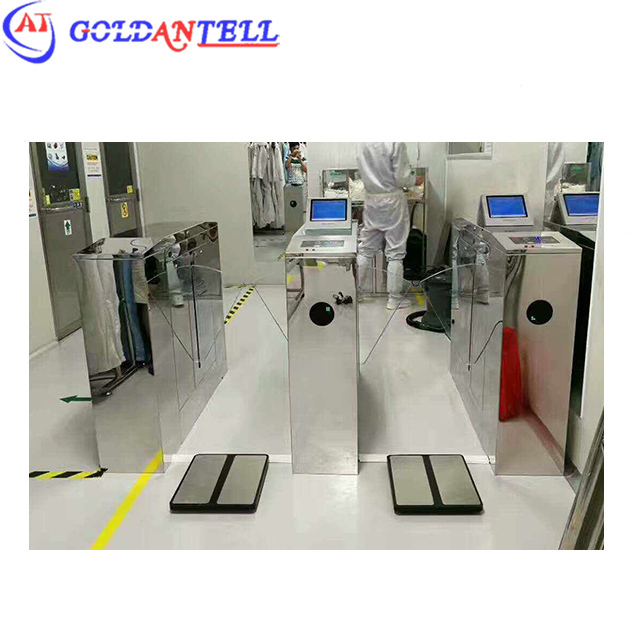

| ハイライト: | stainless steel flap barrier gate,flap barrier gate with ESD tester,550-600mm passage flap barrier gate |
||
| Item | Specification |
|---|---|
| Instrument Dimensions | 8 inch LCD monitor |
| Pedal Size | (W) 400mm x (L) 420mm x (H) 20mm |
| Operating Voltage | Input AC220V output DC12V |
| Working Hours | Unlimited |
| Environmental Conditions | Humidity: 0%~90%, Temperature: 5°C~40°C |
| Data Storage | Automatically stores records and ESD test data (except client mode), recording information up to 100,000 or more |
| Test Range and Accuracy |
Left shoe setting: 0.01-1000MΩ, Accuracy ±5% Right shoe setting: 0.01-1000MΩ, Accuracy ±5% Wrist-strap setting: 0.1-35MΩ, Accuracy ±5% |
| Feature | Specification |
|---|---|
| Power Consumption | AC220V, 50Hz/AC110V, 60Hz (optional) |
| Housing Size | 1200*300*1000mm |
| Housing Material | 1.5-2mm, 304# stainless steel, corrosion resistant |
| Net Weight | 150KG |
| Drive Motor | DC brushless motor |
| Channel Width | 500-600mm |
| Pass Speed | 30-40 persons/min |
| IP Protection | IP54 |
| Input Signal Options | DC12V/dry/contact/RS485/RS232/Remote |
| Fail-Safe Operation | Railing-off against power off |
| Working Temperature | -15°C to 75°C |
| Working Environments | Indoor, outdoor |
| Relative Humidity | ≤95% (non-condensing) |
| MCBF | 2,500,000 cycles |
Who are we?
Shenzhen Goldantell Technology Co., Ltd is a leading exporter and supply chain service provider of intelligent turnstile, access control system and parking management products, established in 2007. We offer customized products and OEM services with new designs introduced annually.
Where are our customers?
Our turnstiles have been exported to over 50 countries including Brazil, Chile, Peru, Colombia, United States, Australia, Canada, New Zealand, the Netherlands, Switzerland, Sweden, Germany, Portugal, Philippines, Vietnam, Singapore, Malaysia, Saudi Arabia, Kenya, Nigeria, Zambia, Angola, Egypt, Ghana, Paraguay, Nepal and Myanmar.
Yes, we can install RFID card reader systems as well as fingerprint reader systems, token systems, ESD systems, etc.
We provide 12-month quality guarantee with well-trained, English-speaking sales and after-sales service team.
Standard items:
10-50 sets: 5 working days
50-100 sets: 7-10 working days
200-500 sets: 10-15 working days
Custom items require 3-10 additional working days
We accept TT, Western Union, L/C, and participate in trade assurance programs for order security.
Samples: 3-5 days by air or express
Bulk orders: 7-60 days by sea depending on destination
Carton package inside with option of crate package or closed wooden package outside.
We offer comprehensive OEM services including custom turnstile design, logo printing, and retail box customization.
Contact person: Vivian Zhou
WhatsApp: +86 13699796334
Wechat: junziyouxin | Skype: goldantell02
Goldantell turnstiles - factory price, high quality, welcome your inquiry!
