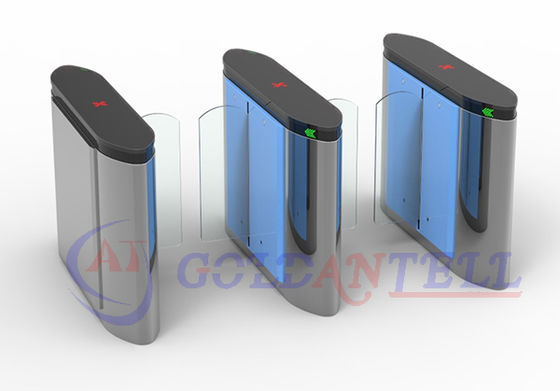

Full Automatic Speed Gate Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection
試供品およびクーポンのための私に連絡しなさい。
WhatsAPPについて:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 電源 | 110~240ボルト（AC） | 頻度 | 50~60のHz |
|---|---|---|---|
| 通過幅 | 550mm-600mm | パス速度 | 30-40人/分 |
| 最大消費電力 | 60W | IP保護 | IP54 |
| 作業温度 | -15〜75°C | バーを除く寸法 | 1200x310x1000 mm |
| 正味重量 | 150 kg | 動作温度 | -15°Cから75°C |
| 相対湿度 | ≤95%,冷却なし | モーター | 0.5NM/24V（全自動） |
| 入れられた関係 | +12V レベル信号またはパルス幅>100ms DC12V | コミュニケーション関係 | RS485通信モジュール規格 |
| 材料の厚さ | SUS304、1.3mm以上 | ||
| ハイライト | 550mm-600mm Passage Width Speed Gate Turnstile,30-40 Persons/Min Pass Speed Automatic Turnstile,IP54 Protection Access Control Turnstile |
||
製品の説明
RFID Interface Double Passage Bi-directional Waist Height Stainless Steel Full Automatic Turnstile Mechanism
This high-quality stainless steel turnstile features RFID interface, double passage, and bi-directional operation for efficient access control in various environments.
Specifications
| Power | AC 220±10%Volt, 50HZ |
|---|---|
| Operating Temperature | -15°C-75°C |
| Relative Humidity | ≤95%, No Condensation |
| Access Width | ≤600mm |
| Passing Speed | 30-40persons/min(IC Card) |
| Motor | 0.5NM/24V(Fully Automatic) |
| Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V |
| Communication Connection | RS485 Communication Module Standard |
| Material | SUS304, thickness is no less than 1.3mm |
| Protection Grade | IP54 |
| Color | SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
| Operation Place | Subway Station, Hoverport, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise's Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control |

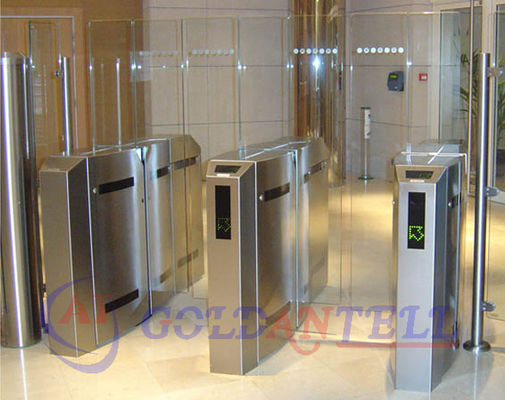

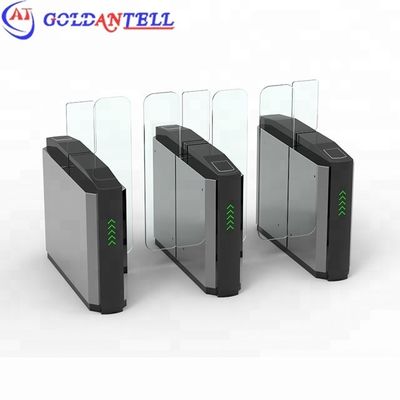

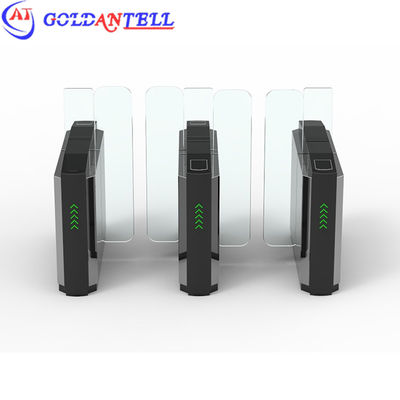

Product Images
Related Products
Functions and Features
- Can open the turnstile by two input signals (signals can be input by access controller, button or other equipments)
- Direction guide function with LED indicators (yellow for ready, blue for access granted, red for unauthorized attempt)
- Multi working modes: single direction or double direction optional
- Fail-safe operation: railing falls when power is off
- Counting function with configurable limit (N≤8 persons)
- Optional voice prompt and display screen
- Optional external counter for people counting
- Optional RS485 communication for PC command through serial port
- Optional self-alarm function for unauthorized access attempts

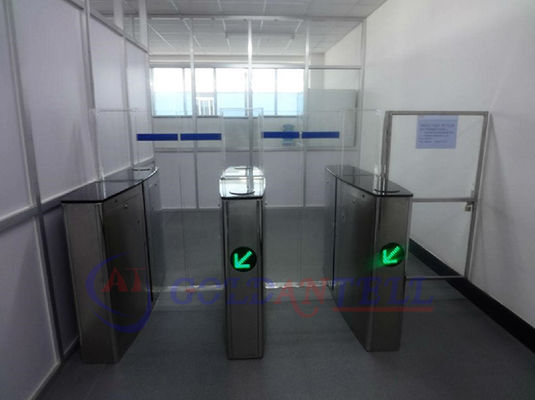

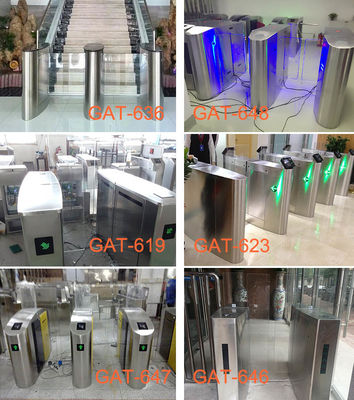

Project Example
About Shenzhen Goldantell Technologies Co., Ltd
We are a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years' experience. Our product range includes intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps, and other related security access control systems. We have exported to more than 50 countries and built long-term partnerships with clients worldwide.
Why Choose Us
Our Pre-sale & After-sale Service
- Pre-sale service: Detailed product information and consultation
- On-purchase service: Regular production updates with photos and testing videos
- After-sale service: Comprehensive installation and usage guidance
- OEM/ODM service: Customization of logo, size, color, etc.
- Professional support: 16-hour response to inquiries
Contact Details
Contact person: Vivian Zhou
WhatsApp: +86 13699796334
Wechat: junziyouxin
Skype: goldantell02
Global Reach
We have successfully delivered turnstiles to more than 50 countries including Brazil, Chile, Peru, Colombia, United States, Australia, Canada, New Zealand, the Netherlands, Switzerland, Sweden, Germany, Portugal, Philippines, Vietnam, Singapore, Malaysia, Saudi Arabia, Kenya, Nigeria, Zambia, Angola, Egypt, Ghana, Paraguay, Nepal and Myanmar.
Frequently Asked Questions
Can you install RFID card reader on the turnstile?
Yes, we can install RFID card reader systems as well as fingerprint reader systems, token systems, ESD systems, etc.
What is your warranty and after-sales service?
We offer 12-month quality guarantee with professional English-speaking sales and after-sales support.
What is your lead time?
For standard items:
10-50 sets: 5 working days
50-100 sets: 7-10 working days
200-500 sets: 10-15 working days
Custom items require 3-10 additional working days
10-50 sets: 5 working days
50-100 sets: 7-10 working days
200-500 sets: 10-15 working days
Custom items require 3-10 additional working days
What are your payment terms?
We accept TT, Western Union, L/C, and participate in Trade Assurance for order security.
How do you ship products?
Samples: By air or express (3-5 days)
Bulk orders: By sea (7-60 days depending on destination)
We offer various packaging options including carton, crate, and closed wooden packages.
Bulk orders: By sea (7-60 days depending on destination)
We offer various packaging options including carton, crate, and closed wooden packages.
Do you offer OEM services?
Yes, we provide comprehensive OEM services including:
1) Custom turnstile design based on your requirements
2) Logo printing on turnstiles
3) Custom retail box packaging
1) Custom turnstile design based on your requirements
2) Logo printing on turnstiles
3) Custom retail box packaging
Trade Terms
- Offer valid for 30 days
- Delivery within 7 days after payment confirmation
- Payment methods: T/T, LC, Western Union, Escrow, PayPal
- Packaging: Carton box + wooden case/crate
Delivery Options
- Sea freight: 15-60 days depending on destination
- Express shipping (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
- Air cargo: 2-7 days
Our Commitment
- 24-hour response to all inquiries
- Professional English-speaking support team
- Comprehensive OEM services
- Expert engineering support
Goldantell turnstiles - factory direct pricing, premium quality. Contact us today for your access control needs!
