Intelligent Full Automatic QR Code Reader Security Turnstile Gate with 1-2 Year Warranty
試供品およびクーポンのための私に連絡しなさい。
WhatsAPPについて:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 表示タイプ | フェイシャルディスプレイLCD画面 | レーン幅 | 55-130cm |
|---|---|---|---|
| 寸法 | 1400*200*1000mm（l*w*h） | 電源 | AC 110〜240V 10％50/60Hz |
| 通信インターフェイス | RS485、TCP/IP | 住宅資料 | 304ステンレス鋼 |
| 開始/閉鎖時 | 0.2秒 | アームマテリアル | 10mmアクリル、強化ガラスまたはスチール |
| アクセスモード | シングルイン/アウトまたは双方向 | パススルー幅 | 900mm |
| 機構 | DCブラッシュモーター+クラッチまたはサーボモーター | 赤外線センサー | 6〜10ペア |
| 最適流量 | 40人/分（開いている）、35人/分（閉じた） | 再調節された時間 | デフォルト10秒 |
| 動作湿度 | 30%~95% | ||
| ハイライト | Intelligent Full Automatic Security Turnstile Gate,QR Code Reader Security Turnstile Gate,1-2 Year Warranty Security Turnstile Gate |
||
製品の説明

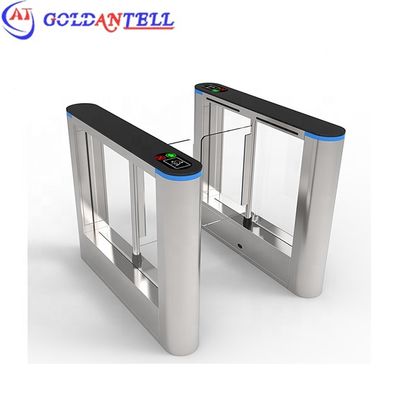

Intelligent Full Automatic QR Code Reader Barrier Swing Gate
ShenZhen face scanner pedestrian channel barrier with advanced access control features
Description Of Barrier Swing Gate
- Application: Outdoor or indoor installation
- LED indicator light: Green and red lights indicate passing status
- Safety glass panel: Slides open horizontally for clear passage
- Emergency feature: Gate auto-opens during power failure to meet fire safety requirements
- Custom security: Available with high visibility glass panels to prevent climbing attempts
- System integration: Standardized electrical interface compatible with various reading devices
Technical Specifications
| 1 | Cabinet dimension | 1400 (L) x 200 (W) x 1000 (H) mm |
| 2 | Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| 3 | Power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| 4 | Opening/closing time | 0.2s |
| 5 | Arm material | 10mm Acrylic, tempered glass or steel (custom) |
| 6 | Access mode | Single in/out or Bidirectional |
| 7 | Passthrough width | 900mm (customizable) |
| 8 | Mechanism | DC Brushed motor+Clutch (or Servo motor) |
| 9 | Communication interface | RS485, TCP/IP |
| 10 | Infrared sensor | 6~10 pairs |
| 11 | Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| 12 | Reset time after breakdown | Default 10s (adjustable) |
| 13 | MCBF | 5,000,000 Cycles |
| 14 | Working humidity | 30%~95% |
Key Features
- Adjustable passing time settings
- Anti-tailgating detection with alarm system
- Bicycle delay function for safety
- Multiple control modes including scheduled open periods
- Flexible operation modes (two-way, one-way, or free pass)
- Compatible with various control methods (external button, remote, barcode, IC/ID cards)
Product Variations
- Vertical shape
- Bridge shape (this model)
- Pillar shape (tube type)
- Single motor (for single/multiple passageways)
- Double motors (for multiple passageways)
Ideal Installation Sites
Exhibition halls, Commercial buildings, Parks, Offices, Stadiums, Libraries, Museums
Our Services
- Complete security solutions to save time and costs
- Competitive pricing with OEM/ODM services available
- Professional technical support and after-sales service
- Custom designs and logos (free for bulk orders)
- Fast delivery with secure shipping methods
Frequently Asked Questions
- Q: Can I get a system without software for ESD testing?
A: Yes, we offer multiple options available in our catalog. - Q: What language versions are available?
A: English and Chinese versions supported. - Q: Are manuals and installation guides provided?
A: Yes, English manuals are available. - Q: Can I request custom modifications?
A: Yes, we specialize in OEM/ODM services. - Q: What are the payment terms?
A: 100% payment before shipment with product photos/videos provided. - Q: What delivery options are available?
A: EXW, FOB, CFR, CIF, DDU.
About Shenzhen Goldantell Technology Co.,Ltd
Established in 2007, we are a leading provider of intelligent turnstiles, access control systems, and parking management solutions. We specialize in customized products and OEM services, with new designs developed annually.
Our Advantages
- Professional OEM/ODM design services
- CE certified with European government project experience
- Experienced sales team with 4+ years in turnstile industry
- Competitive pricing with high quality standards
- Custom solutions for specific client requirements
Customer Service Commitment
- Pre-sale: Detailed product consultation and requirements analysis
- Production: Regular updates with photos and testing videos
- After-sale: Comprehensive manuals and installation guides
- Customization: 10+ years OEM/ODM experience for tailored solutions
- Support: 16-hour response window for all inquiries
