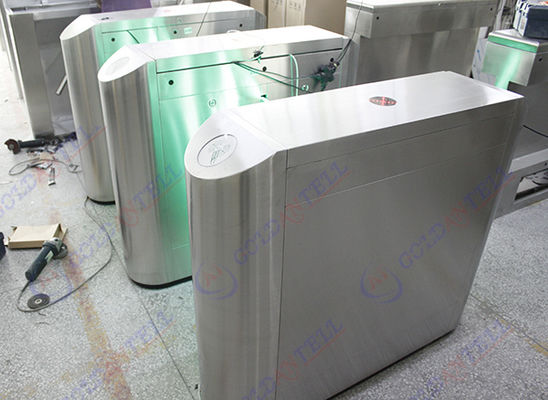

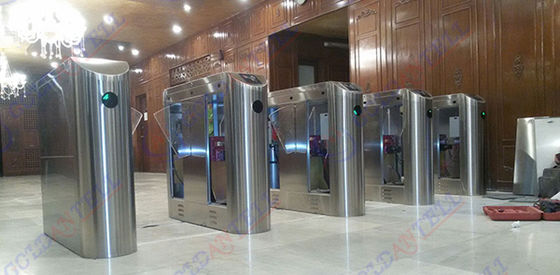

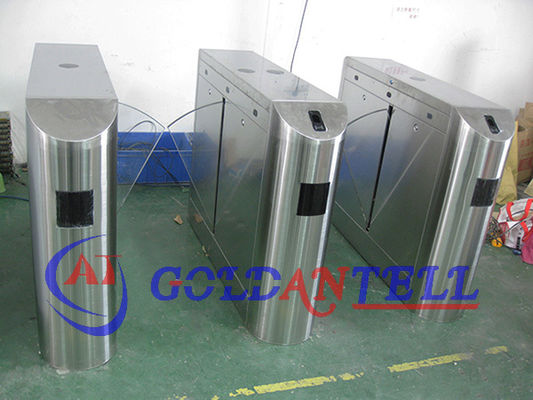

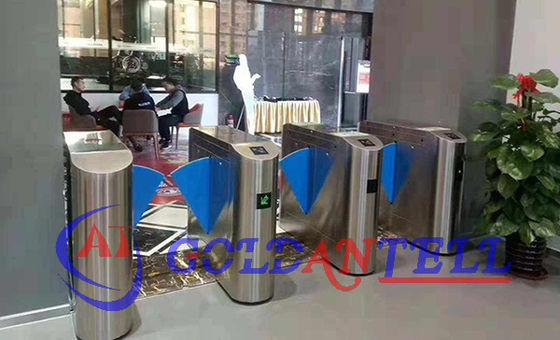

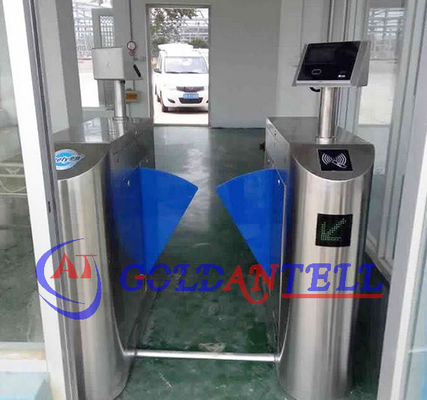

Intelligent Flap Turnstile with RFID Interface 304 Grade Stainless Steel IP54 Protection for 30-40 Persons per Minute
無料サンプルとクーポンについては、ご連絡ください。
WhatsAPPについて:0086 18588475571
ウェイチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| 湿度 | ≤95% 凝縮しない | 温度範囲 | -15°Cから75°C |
|---|---|---|---|
| 運輸速度 | 1分あたり30-40人 | パワー電圧 | AC220(10%以上)V、50HZ |
| インタフェース | 標準ポート - RS485 | 腕の長さ | 285mm |
| 枠組み資料 | 304の等級のステンレス鋼 | 保護グレード | IP54 |
| 寸法 | L1200*W280*H1000 (mm) | フラップの長さ | 285mm |
| フラップの厚さ | 18mm | 正味重量 | 150kg/ペア |
| 標準的な道の幅 | 550mm | モーター電圧 | DC24V |
| 通信距離 | 1200メートル未満 | ||
| ハイライト | 304 Grade Stainless Steel Flap Turnstile,IP54 Protection Flap Turnstile,30-40 Persons per Minute Flap Turnstile |
||
製品の説明
Intelligent Enter and Exit Access Control Gate Electronic Barrier Smart Card Door Flap Turnstile with RFID Interface
Technology Specifications
| Material | 304 stainless steel (standard) or Painted Steel |
|---|---|
| Flap Wing | Acrylic glass (standard), Resin, or PVC |
| Dimensions | L1200 × W280 × H1000 (mm) |
| Optical Turnstile Flap | 285mm (length), 18mm (thickness) |
| Net Weight | 150Kg/pair |
| Standard Passage Width | 550mm |
| Power Supply | 220V, 240V, or 110V 50Hz/60Hz |
| Motor | DC24V |
| Communication Interface | RS485 (distance less than 1200 meters) |
| Input Interface | Dry contact signal or 12V level signal or DC12V pulse signal |
| Driving Current | > 10mA |
| Normal Lifespan | 3 million cycles |
| Transit Speed | 30-40 persons/minute |
| Open/Close Time | 1 second |
| Working Environment | Indoor/Outdoor (with cover), Temperature: -15°C to 75°C, Humidity: ≤95% (no condensation) |
Key Features and Functions
- Self-diagnostic problem detection system
- Multiple operation modes including bi-directional card reading and single-direction photocell control
- Automatic arm opening during power failure with auto-hold when power returns
- Adjustable closing delay (1-60 seconds)
- Auto-reposition function with configurable timeout period
- Anti-tailgating alarm system
- RS485 interface for remote control
- Anti-rush mechanism with tight hold when no open signal
- Dual anti-pinch protection: photocell and mechanical
- Standard electrical interfaces for various reader integration
- Passenger counting with LED display
- Directional guidance indicators
- Memory and non-memory card reading options
- Population control through management software
- Quiet operation with stable performance
About Shenzhen Goldantell Technologies Co., Ltd
We are a leading exporter and supply chain service provider of intelligent turnstile and parking management products with over 8 years of experience.
Our product range includes intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps, and related security access control systems. We have exported to more than 50 countries worldwide.
Our Services
- Pre-sale consultation and product information
- Production updates with photos and testing videos
- Comprehensive after-sale support including installation guides
- OEM/ODM services for custom branding and specifications
- 16-hour professional support with prompt responses
Global Reach
We have successfully delivered turnstiles to over 50 countries including USA, Canada, Australia, European nations, Middle East, Africa, and Southeast Asia.
Trade Terms
- 30-day valid quotation
- 7-day delivery after payment confirmation
- Payment methods: T/T, LC, Western Union, Escrow, PayPal
- Packaging: Carton box with wooden case/crate
Delivery Options
- Sea freight: 15-60 days (depending on destination)
- Express shipping (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
- Air cargo: 2-7 days
Contact Information
Goldantell turnstiles - factory direct pricing, premium quality, ready for your inquiry!
