Electronic Turnstile Barrier Gate with 0.2s Barrier Open/Close RS485 Communication and 600mm Passage Width
無料サンプルとクーポンについては、ご連絡ください。
WhatsAPPについて:0086 18588475571
ウェイチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| アクセス制御タイプ | ICカード、指紋、QRコード | バリアの開き時間 | 0.2 s |
|---|---|---|---|
| 通信インターフェイス | RS-232、RS485 | 操作方向 | 2ウェイ |
| バリアモーター | ブラシ付きモーター | 材料 | ステンレス鋼 |
| 材料品質 | 202/304/316 ステンレス鋼 | 通過幅 | 600mm |
| サイズ | 1530×1350×2300(mm) | コミュニケーション | TCP/IP、RS485 |
| 電圧 | AC220V、50HZ | 制御回路 | DC24V |
| 消費電力 | 100W | 信号出力 | リレーまたは12Vパルス |
| 包囲の温度 | -15~+75 °C | ||
| ハイライト | 0.2s Barrier Open/Close Electronic Turnstile,RS485 Communication Barrier Gate,600mm Passage Width Security Turnstile Gate |
||
製品の説明

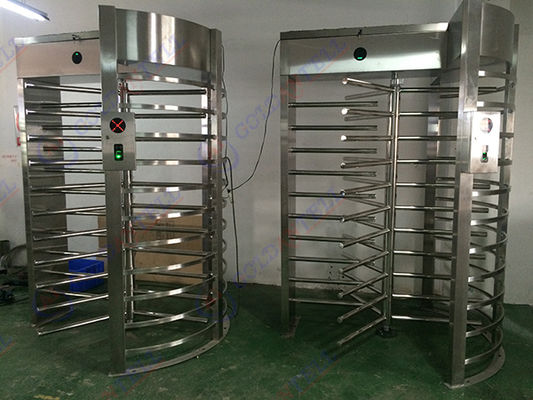

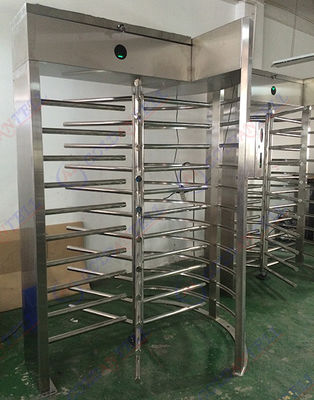

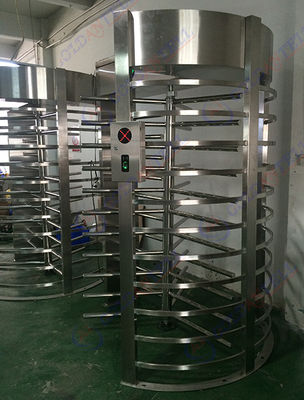

Entrance Control China OEM Waist Full Height Electronic Turnstile Barrier Gate
The full-height turnstile barrier gate combines the functions of two single rotor turnstiles into one unit. The intermeshing left and right rotors reduce overall width from 2.8m to 2.2m while maintaining passage space. Two rotors provide four control points (two entries and two exits), with each rotor controllable in one or two directions. The stainless steel construction is suitable for both interior and exterior applications.
Key Features
- Reliable design with low noise operation and long service life
- Standard switch signal input compatible with various access control systems
- Multiple operating modes including bi-directional card reader/fingerprint options
- Adjustable hydraulic shock absorbers for smooth operation
- Anti-recoil mechanism that locks when opposite direction entry is detected
Custom Configuration Option

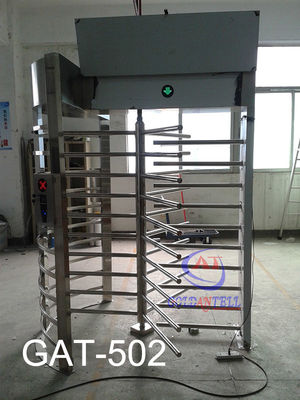

Available with a 1.1 meter long bypass door (model GAT-502) as shown below:
Technical Specifications
- Stainless steel housing
- Standard electrical interface
- Real-time alarm system
- Auto-reposition function
- DFID interface and photoelectric inspection
- RS232 and LAN sockets
- Adjustable valid passing time setting
- Optional passenger counters

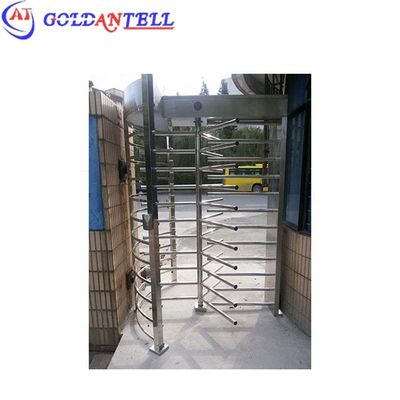

Installation Environments
Suitable for both indoor and outdoor applications
Packaging & Shipping
Internal Components
About Shenzhen Goldantell Technologies
We are a leading exporter and supply chain service provider of intelligent turnstile and parking management products with over 8 years of experience. Our product range includes intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps, and related security access control systems. We have exported to more than 50 countries worldwide.
Our Certifications
Global Reach
Our products have been exported to over 50 countries including Brazil, Chile, United States, Australia, Canada, European nations, Middle Eastern countries, and various African and Asian markets.
Frequently Asked Questions
Can you install RFID card reader on the turnstile?
Yes, we can install RFID card reader systems, fingerprint reader systems, token systems, ESD systems, and other access control options.
What is your warranty and after-sales service?
We provide a 12-month quality guarantee with English-speaking sales and after-sales support teams.
What are your lead times?
Standard items:
- 10-50 sets: 5 working days
- 50-100 sets: 7-10 working days
- 200-500 sets: 10-15 working days
Custom items require 3-10 additional working days.
- 10-50 sets: 5 working days
- 50-100 sets: 7-10 working days
- 200-500 sets: 10-15 working days
Custom items require 3-10 additional working days.
What payment methods do you accept?
We accept TT, Western Union, L/C, and participate in Trade Assurance for order security.
What are your shipping options?
Samples: 3-5 days by air/express
Bulk orders: 7-60 days by sea depending on destination
We also offer air cargo (2-7 days) and express shipping options.
Bulk orders: 7-60 days by sea depending on destination
We also offer air cargo (2-7 days) and express shipping options.
Our Services
- 24-hour response to inquiries
- English-speaking sales and support teams
- OEM services including custom branding and packaging
- Engineering support for installation and operation
- Pre-sale consultation and post-sale technical support
Contact Information
Contact: Vivian Zhou
WhatsApp: +86 13699796334
WeChat: junziyouxin
Skype: goldantell02
WhatsApp: +86 13699796334
WeChat: junziyouxin
Skype: goldantell02
