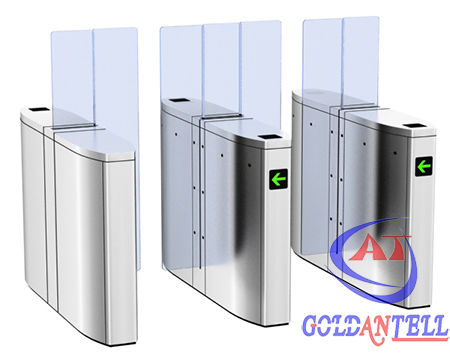

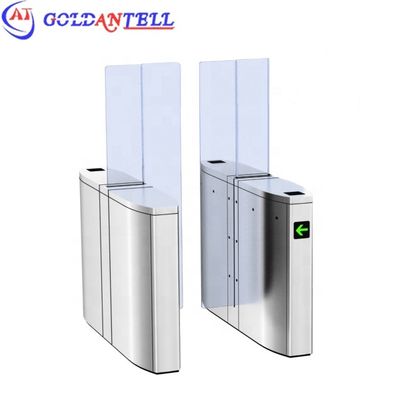

1.8M Full High Turnstile with 304 Stainless Steel Construction and IP54 Protection for Secure Dual Lane Entry
無料サンプルとクーポンについては、ご連絡ください。
WhatsAPPについて:0086 18588475571
ウェイチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| アクセス制御 | RFIDカード、QRコード | バリア速度 | 0.2 s |
|---|---|---|---|
| 通信インターフェース | RS-232、RS485、TCP/IP | 操作方向 | 2ウェイ |
| バリアモーター | ブラシレスモーター | 保護レベル | IP54 |
| ターンスタイル機能 | 挟み込み防止、衝突回避、共連れ防止 | 寸法 | 1400*310*1000mm (長さ*幅*高さ) |
| 表示タイプ | LCD画面 | レーン幅 | 55-130cm |
| 電源 | AC 110〜240V 10％50/60Hz | 住宅資料 | 304 ステンレス鋼 |
| アームマテリアル | 10mmアクリル、強化ガラスまたはスチール | 赤外線センサー | 6〜10ペア |
| 流量 | 40人/分（開いている）、35人/分（閉じた） | ||
| ハイライト | 1.8M Full High Turnstile,304 Stainless Steel Turnstile,IP54 Protection Turnstile |
||
製品の説明
Dual Lane Entry Staff Time Attendance System with 1.8M Full High Turnstile NFC Reader Turnstiles
Staff Time Attendance 1.8meter Full High Turnstile NFC Reader Double Lane Entry System
Full High Turnstile Features
- Goldantell intelligent series turnstile gates with excellent design and performance, utilizing innovative technology and high-quality materials
- Electric control with DC motor for stable, reliable operation and low failure rate
- Ultra-high light traffic indicator with directional instructions using bright LED lights
- Compatible with Face, thermal, RFID, fingerprint, QR/barcode, and ESD access control systems
- Custom OEM/ODM services available for size, shape, and other specifications
- Constructed with 304 stainless steel, IP54 waterproof rating, elegant anti-rust design
Full High Turnstile Specifications
| Specification | Details |
|---|---|
| Cabinet dimension | 1400 (L) x 310 (W) x 1000 (H) mm |
| Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Opening/closing time | 0.2s |
| Arm material | Thickness 10mm Acrylic, or tempered glass or steel (custom) |
| Access mode | Single in/out or Bidirectional |
| Passthrough Width | 900mm (or custom) |
| Mechanism | DC Brushed motor+Clutch (or Servo motor) |
| Communication interface | RS485, TCP/IP |
| Infrared sensor | 6~10 pairs |
| Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| Reset time after break down | Default 10s (adjustable) |
| MCBF | 5,000,000 Cycles |
| Working humidity | 30%~95% |
Security Features
- Multi alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm
- Bi-directional or single way operation options
- Auto-open gate during power failure to meet fire protection requirements
- Anti-Tail gaiting feature to prevent unauthorized entry
- Wings open automatically during power interruption
- Fast opening and closing time
- Built-in mechanical lock to prevent forced opening
- Multiple pairs of IR sensors
Ideal for:
- Banks
- Fitness Gyms
- Factories
- Hotels
- Movie theaters
- Office buildings
Frequently Asked Questions
Can I have a system that only supports ESD test without software?
Yes, there are more options available. Our catalog can help you make a choice.
What language versions are available for the software system?
English and Chinese versions are available.
Can I get a software manual or installation instructions?
Yes, English version manuals are available.
Can I customize the system?
Yes, we offer OEM/ODM services with extensive experience in government projects.
What are your payment terms?
100% payment before shipment. We provide photos/videos of products before final payment.
What are your delivery terms?
EXW, FOB, CFR, CIF, DDU available.
Packing Details
- Exported product: Wooden case package with pearl wool and plastic wrap
- Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging
- Professional, environmentally friendly packaging services provided
Company Information
Shenzhen Goldantell Technology Co.,Ltd is a leading exporter and supply chain service provider of intelligent turnstile, access control system and parking management products since 2007. We offer customized products and OEM services with new designs developed annually.
Our Services & Strength
- Professional OEM/ODM design services
- CE approved with European government project experience
- Experienced sales team with 4+ years in turnstile trade
- Competitive pricing with high quality standards
- Custom products and access control systems available
Our Pre-sale & After-sale Service
- Pre-sale: Detailed product information and consultation
- On-purchase: Production updates with photos and testing videos
- After-sale: Installation guides and manuals provided
- OEM/ODM: Custom logo, size, color options
- Professional support: 16-hour response time
Contact Details
Contact person: Vivian Zhou
WhatsApp: +86 13699796334
Wechat: junziyouxin | Skype: goldantell02
