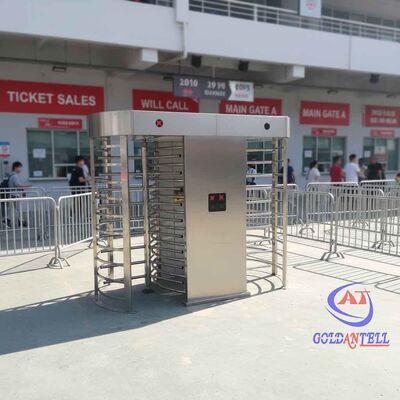

Anti-climb Robust Full Height Turnstile Security Pedestrian Gate with QR Code & Card Reader for Stadium and Airport Site
| 起源の場所 | 広東省、中国 |
|---|---|
| ブランド名 | Goldantell |
| 証明 | CE/ROHS/FCC/IS9001 |
| モデル番号 | GAT-501 |
| 文書 | Full Catalog Of Full Height...te.pdf |
| 最小注文数量 | 1PC |
| 価格 | 交渉可能 |
| パッケージの詳細 | 最初にカートンに詰めてから、外装用の輸出用木製ケースで強化します |
| 受渡し時間 | 支払いを受け取ってから7営業日 |
| 支払条件 | T/T、ウェスタン・ユニオン、L/C、Paypal |
| 供給の能力 | 1ヶ月あたりの2,000pcs |
商品の詳細
| 製品サイズ | 2350L*1350W*2300H (MM) またはカスタムサイズ | 材料 | 304 ステンレス鋼 |
|---|---|---|---|
| 正味重量 | 200kg | 総重量 | 250kg |
| 通信ポート | RS485、TCP/IP | 動作電圧 | AC220±10％V、50±10％Hz |
| パススピード | 30人/分 | 作業環境 | 屋内・屋外（テント使用時） -25℃～70℃ |
製品の説明
Anti-climb Robust Full Height Turnstile Security Pedestrian Gate with QR Code & Card Reader for Stadium and Airport Site
Product Description
- Robust Design: Durable full-height turnstile ensures secure pedestrian control.
- Multi-access Control: Supports both card readers and QR codes for versatile access management.
- High Security: Anti-climb features prevent unauthorized entry, ideal for stadiums and airports.
Key Features
- Finely processed with complete functions for high-security applications
- Ideal for prisons, office buildings, government facilities, and statistical offices
- LED indicator lights for clear operation status
- Compatible with various access control systems (RFID, fingerprint, QR code, etc.)
- Unique two-way anti-reverse function
- Programmable operating status via built-in control board
- Automatic reset function (1-60 seconds adjustable)
- Supports unidirectional or bidirectional access control
- Remote management capability via computer
- Customizable housing length and design
- Adjustable normally open/closed settings
Technical Specifications
| Size | 2350L * 1350W * 2300H (MM) or custom size |
|---|---|
| Communication Interface | Standard RS 485 interface, distance ≤1200m |
| Working Voltage | AC220±10%V, 50±10%HZ |
| Working Movement | DC 24 V solenoid valve |
| Reset Time After Breakdown | 10 seconds |
| Passage Width | ≤600 mm |
| Time of Opening | 0.2 second |
| Pass Speed | 30 persons/min |
| Time to Work After Power On | 3 seconds |
| Normal Running Life | 3 million cycles |
| LED Light | Direction arrow |
| Working Environment | Indoor/outdoor (with tent) -25℃ to 70℃ |
| Housing Material | Domestic standard 304# stainless steel |
| Relative Humidity | ≤90% (non-condensing) |
| Input Interface | +12V level signal or pulse width >100 ms 12V pulse, drive current >10 mA |
Competitive Advantages
- 24-month quality guarantee
- OEM/ODM services available (custom designs, logos, and packaging)
- Comprehensive pre-sale and after-sale support
- Fast delivery times
- Professional engineering support
- Special discounts for distributors and agents
Frequently Asked Questions
Can you do OEM service?
We offer comprehensive OEM services including custom turnstile designs (size, material, LED indicators), logo printing, and customized retail packaging. We can also create designs based on your specific requirements.
Is your turnstile compatible with different access control systems?
Yes, our intelligent turnstile works with various access controllers including RFID cards, fingerprint scanners, QR/barcode systems, and ESD test control systems. We can also provide compatible access control software or systems.
What is your warranty and after-sales service policy?
We provide a 12-month quality guarantee and have English-speaking sales and support teams available to assist with any after-sales needs.
What are your lead times?
Standard items:
• 10-50 sets: 5 working days
• 50-100 sets: 7-10 working days
• 200-500 sets: 10-15 working days
Custom designs or packaging may require an additional 3-10 working days.
• 10-50 sets: 5 working days
• 50-100 sets: 7-10 working days
• 200-500 sets: 10-15 working days
Custom designs or packaging may require an additional 3-10 working days.
What payment methods do you accept?
We accept TT, Western Union, and L/C payments. Our company participates in Trade Assurance to protect your order security.
