Sleek Cylindrical Swing Turnstile ZKTeco Integrated Biometric Face Recognition Slim Column Speed Gate Space-saving VIP Wide Lane
商品の詳細
| OEM | OEM腕長 オーダーメイドロゴ オーダーメイドサイズ | ポーランド人のサイズ | 直径168mm 高さ1050mm |
|---|---|---|---|
| 通路幅 | 530mm-830mm | 電源 | AC100V-240V |
| 互換性がある | RFID Reader&Fingerprintの読者、硬貨のアクセス、QRコード読者、バー コード システム、ESDのテスターのアクセス管理、遠隔ボタン | タイプ | オートマティック・インテリジェント・スイング・バリアゲート |
| 通信ポート | RS485、TCP/IP | 材料 | 304ステンレス製steel/316ステンレス鋼 |
製品の説明

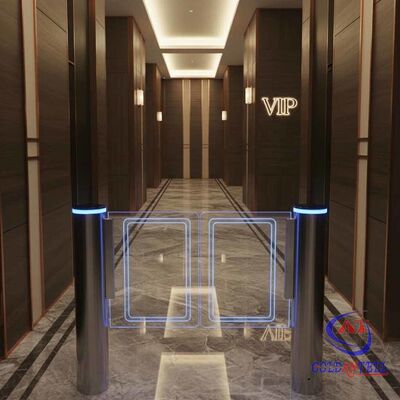

Sleek Cylindrical Swing Turnstile with Integrated Biometric Face Recognition
ZKTeco integrated biometric face recognition slim column speed gate featuring space-saving VIP wide lane design for high-traffic environments.
Product Profile
- Biometric Recognition: Secure access control for enhanced safety
- Space-Saving Design: Efficiently manages high foot traffic areas
- Wide Lane Capability: Facilitates smooth passage through crowded spaces
- Sleek Cylindrical Design: Adds modern aesthetic to any environment
- High Security: Ensures privacy and protection against unauthorized entry
Key Features
- Constructed with 304/316 grade stainless steel for superior anti-rust and durability
- Elegant rectangular box design with brake lever for controlled passage management
- Integrated machine, electronics, and microprocessor control systems
- Compatible with multiple identification methods: IC card, ID card, bar code, and fingerprint
- Ideal for high-security areas including neighborhoods, hotels, subways, and corporate buildings
Technical Specifications
| Working Voltage | AC220±10%V 50±10%HZ |
| Dimensions | 168mm diameter pillar, 1050mm height |
| Passage Width | 550mm - 1800mm |
| Swing Arm Rotation | 180 degrees |
| Operation Direction | Single or bi-directional (configurable) |
| Opening/Closing Speed | 1 second |
| Control Methods | Push button, RFID card, fingerprint recognition |
| Throughput Capacity | 40 persons/min (open), 25-30 persons/min (closed) |
| Operational Lifespan | 3 million cycles |
| Environmental Rating | Indoor/outdoor (with cover), -10℃～70℃ |
| Drive Mechanism | DC 24V brush motor |
Standard Security Functions
- Intrusion Alarm: Triggers when arms are forced illegally and locks mechanism
- Automatic Locking: Secures gate when receiving no open signal
- Collision Protection: Arms open automatically upon impact to protect internal mechanisms
- Timed Reset: Cancels access authority after 10 seconds (adjustable 1-60s)
- Anti-Pinch System: Mechanical and infrared protection against entrapment
- System Integration: Compatible with access control, biometric, and ESD systems
- Status Indicators: Flashing light alerts for maintenance identification
Optional Enhancements
- Advanced infrared logical judgment (8-10 pairs)
- Voice prompt and sound/light alarm systems
- LED people counting display
- Extended box housing and swing arm lengths
- Adjustable normally open/closed operation modes
Application Environments
| Entertainment Venues | Movie theaters, clubs, gyms, swimming pools, fairgrounds |
| Public Facilities | Subways, airports, libraries, museums, stadiums, parks |
| Commercial Spaces | Hotels, offices, banks, hospitals, schools, residential complexes |
Packaging Options
- With access control system: Sealed wooden case
- Without access control: Choice of crate or closed wooden box
- Pair packaging: Two packages required
Customization Options
- Cabinet appearance tailored to client specifications
- Stainless steel thickness: 1.2mm-2.0mm
- Material grades: 304 or 316 stainless steel
- Surface finishes: Satin, polished, anti-fingerprint, frosted, electroplated, or baked
Competitive Advantages
- 24-month quality guarantee
- Custom designs and logos available
- Fast production and delivery
- Engineering support team
- Distributor discounts
- Export-standard packaging
- CE and ROSH certified
