Fire Alarm Linkage Tripod Turnstile Emergency Auto-Lift Arm Automatic Reset Biometric Fingerprint Access for School Hospital
商品の詳細
| 寸法 | L1200xW280xH1000mm | 通過速度 | 25~30人/分 |
|---|---|---|---|
| 電源 | 110～240V(AC) | 通路幅 | 600mm |
| 動作電圧 | AC220±10%V 50±10%HZ | 腕の幅 | 510mm |
| 支援部隊 | 60kg | 開口時間 | 0.2第2 |
製品の説明
Fire Alarm Linkage Tripod Turnstile with Emergency Auto-Lift Arm & Biometric Fingerprint Access
Advanced tripod turnstile system featuring emergency auto-lift arm functionality and biometric fingerprint access control, specifically designed for high-security environments like schools and hospitals.
Key Features
- Emergency Auto-Lift Arm: Quickly opens turnstiles during emergencies for safe evacuation
- Biometric Fingerprint Access: Secure entry for authorized personnel with precise biometric scanning
- Automatic Reset: Ensures continuous operation by automatically resetting after use
- School & Hospital Compatibility: Ideal for securing high-traffic areas in educational and medical facilities
- Tripod Turnstile Design: Stable tripod base provides robust stability during heavy use
Technical Specifications
| Size | 1200mm (L) × 280mm (W) × 1000mm (H) |
| Working Voltage | AC220±10%V 50±10%HZ |
| Working Movement | DC24V solenoid valve |
| Arm Width | 510 mm |
| Support Force of Arm | 60kg |
| Passage Width | ≤600 mm |
| Opening Time | 0.2 second |
| Pass Speed | 30 persons/min |
| Emergency Feature | When power off, arm opens automatically |
| Normal Running Life | 3 million cycles |
| LED Light | Direction arrow |
| Direction | Single or bi-directional (optional) |
| Working Environment | Indoor/outdoor (with a tent over) -10℃～70℃ |
| Relative Humidity | ≤90% coagulation free |
| Communication Interface | Standard RS485 interface, distance ≤1200m |
| Housing Material | Domestic standard 304 # stainless steel |
| Input Interface | +12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
Applications
- Public Places: Lobby entry, subway, airports, stations, library, bookstores, parks, exhibition halls, stadium, museums, apartments, residence area, offices, commercial buildings
- Entertainment Places: Movie theaters, fitness halls, country clubs, fairground, clubs, swimming hall, fitness gym
- Business Organizations: Hotel, factory, bank, prison, hospital, school, enterprise's entrance and exit attendance
Features & Functions
- Low noise, no mechanical impact
- Single directional or bi-directional operation
- High operation with quick response
- Excellent design with high quality
- Robust, rigid, anti-rust and durable construction
- Smoothly working system
- Self-test function
- Added functions: Counting function, information display option, audible sound prompt, invalid entering alarm, auto-lift-arm function

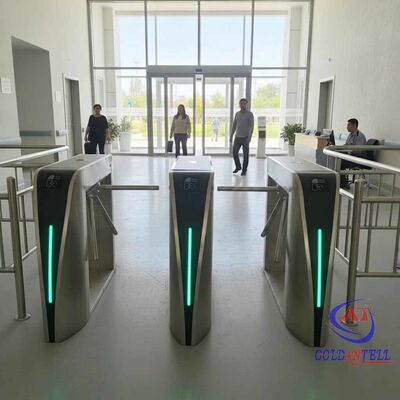

Product Image
Frequently Asked Questions
How long is your warranty period?
One-year guarantee & Lifetime technology support.
How about the payment method?
If order amount ≤5000USD, 100%T/T in advance. If the order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
Which payment terms are you accept?
T/T, Western Union, LC, PayPal, etc.
Can we visit your factory?
Yes. Any time will be welcome.
How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap.
Control Options
- Access control systems: fingerprint/face recognition/card reader/QR code/barcode ticket system
- Support special functions: counter, coin-operation
- ESD tester system and function
Why Choose Our Product
- More than 15 years powerful ODM/OEM ability, could make product shape design, custom logo, custom package
- Friendly and professional customer service people help you in 16 hours
- We can provide not only product, but also system software management. Save your time and cost
- Special service: For repairing, no need to return product, only need video instruction. If spare parts damaged within 1 year, we send replacements at no cost
Internal Details
