Torniquete de Acesso Swing Gate Robusto Vandal-proof Automatic Speed Barrier for LATAM Residential Condos and Industrial
商品の詳細
| 製品のサイズ | 1200*280*1000mm | 応用 | 健康のプロジェクト、ホテル、酒保、病院、オフィス ビル、習慣、代理店、観光の名所、工場 |
|---|---|---|---|
| 同一証明の速度 | 表面検出および20氏を追跡すること | 識別高さ | 1.2m～2.2m |
| ウィーガンド形式 | 26/34 | 作業環境 | 屋内/屋外（避難所） |
製品の説明

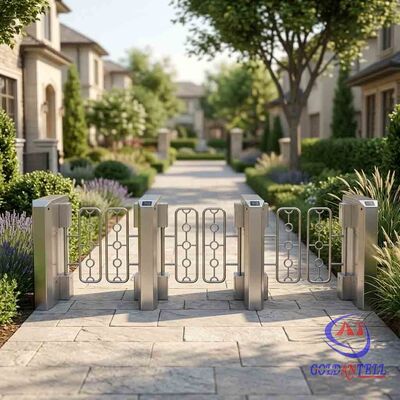

Torniquete de Acesso Swing Gate Robusto Vandal-proof Automatic Speed Barrier
Automatic speed barrier designed for controlled access in LATAM residential condominiums and industrial facilities. Features vandal-proof construction and robust design for high-security environments.
Key Features
- Automatic Speed Barrier: Ensures smooth entry and exit control
- Vandal-proof Design: Built to withstand damage in high-security environments
- Robust Construction: Durable design suitable for residential and industrial use
- LATAM Residential Focus: Specifically tailored for LATAM residential communities
- Industrial Applications: Effective in various industrial settings requiring controlled access
Technical Parameters
| Size of housing | 1200/1400mm (L) × 280mm (W) × 1000mm (H) |
| Pass through width | 60/90cm standard (120cm and custom-made available for pairs) |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Drive motor | Standard DC 24V brush motor (brushless motor optional) |
| Normal running life | 3 million cycles |
| Time of opening/closing | 0.6 second |
| Time to work after power on | 3 seconds |
| Reset time after break down | 10 seconds |
| Direction | Single or bi-directional (optional) |
| Working environment | Indoor/outdoor (with tent) -10℃～70℃ |
| Communication interface | Standard RS485 interface, distance ≤1200m |
| Input interface | +12V level signal or pulse width >100 ms, 12V pulse, drive current >10 mA |
| Relative humidity | ≤90% coagulation free |
| Housing material | Domestic standard 304# stainless steel |
| Working voltage | AC100-240V, 50±10% HZ |
Functions
- Self-examination and alarm function for easy maintenance
- Programmable operation state via main board keyboard
- Swing arm stops when blocked to prevent injuries
- Automatic arm locking until opening signal received
- Adjustable arm synchronization
- Light and sound alarm for illegal invasion and tailgating
- Automatic reset function with pre-set time locking
- Adjustable passing time
Project Applications
Hotel
Factory
Bank
Prison
Hospital
School
Enterprise Entrance/Exit
Attendance Systems
Movie Theaters
Fitness Halls
Clubs
Swimming Halls
Gyms
Additional Features
- Fast recognition capability
- Support for photosensitive sensor infrared and LED fill light
- Support for serial port driver, Wiegand 26/34 bit output
- Dynamic face detection and tracking based on video stream
- Multiple access control options including ESD tester integration
Service & Support
- Security solution provider helping save time and costs
- Competitive pricing with OEM and ODM services
- Professional technical support and after-sales service
- Custom design shapes and logos available
- Fast delivery with safe shipping methods
- One year warranty with lifetime technical support
- 24-hour online service with 8-hour response time
Frequently Asked Questions
Can your machines be used outside?
With waterproof function, could be used outside.
How about your package?
Seaworthy wooden case + Foam.
How about the payment method?
Standard products: 50% deposit, 50% balance payment before shipment.
How about the lead time?
Regular products need 5-8 working days. Customized products need 9-13 working days.
