IP66 Waterproof Heat-Resistant Swing Turnstile Gate Heavy Duty Automatic Speed Barrier for Smart City Perimeter Security
商品の詳細
| 材料 | 304 ステンレス鋼 | サイズ | 1400*200*1000mm |
|---|---|---|---|
| 製品名 | 保証折り返しの障壁の回転木戸のゲート | コミュニケーション | RS485かTCP/IP |
| 応用 | オフィス\学校\空港\地下鉄\屋外、アパートのドア | 電源 | AC100V-240V |
| 作業環境 | 屋内/屋外（避難所） | 通路幅 | 600mm |
製品の説明

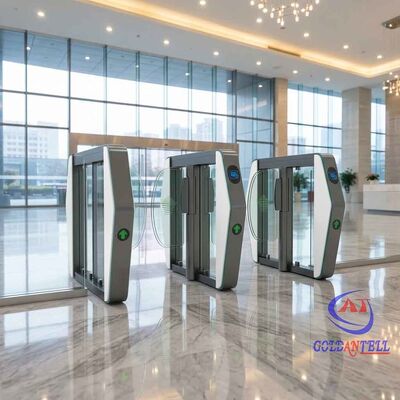

IP66 Waterproof Heat-Resistant Swing Turnstile Gate Heavy Duty Automatic Speed Barrier for Smart City Perimeter Security
Advanced swing turnstile gate designed for robust perimeter security in smart city environments, featuring IP66 waterproof rating and heat-resistant construction.
Product Features
- IP66 Waterproof: Ensures secure operation in harsh environments
- Heat-Resistant: Operates efficiently in extreme temperatures
- Heavy Duty Design: Built for durability in high-traffic areas
- Automatic Speed Barrier: Facilitates smooth pedestrian flow
- Rapid identification for magnetic cards, barcode cards, ID cards, and IC cards
- DC Brushless Motor: Maintenance-free operation
- Auto-lift-arm function with power restoration alert
- Auto-drop-arm function during power loss
- Automatic reset functions with adjustable timing (1-60 seconds)
Technical Specifications
| Specification | Details |
|---|---|
| Cabinet Dimension | 1400 (L) x 85 (W) x 1000 (H) mm |
| Cabinet Material | 304 stainless steel (SUS316 custom option available) |
| Lane Length | Standard 600mm (customizable up to 900mm) |
| Flap Opening/Closing Time | 0.6 seconds |
| Passing Direction | Single in/out or Bidirectional |
| Drive Motor | Standard DC 24V brush motor (brushless or servo options available) |
| Access Readers | RFID cards, fingerprint, barcode, ticket scanners |
| Normal Running Times | 3 million cycles |
| Reset Time After Breakdown | Default 5 seconds (customizable) |
| IR Sensors | Standard 6 pairs (8 pairs, 10 pairs options available) |
Design
Key Advantages
- Professional OEM and ODM design services available
- CE approved with European government project experience
- Experienced sales team with over 4 years in turnstile industry
Packing & Delivery
- Carton package interior with two exterior options: crate package or closed wooden package
- Standard delivery: <10 pieces in 7 working days; >50 pieces in 10-15 working days
- Customized products require additional 2-3 working days
Application Projects
- Factories and industrial facilities
- Office buildings and corporate campuses
- Clubs and entertainment venues
- Intelligent communities and residential complexes
- Airports and transportation hubs
- Railway stations and public transit
- Docks and maritime facilities
- Scenic spots and tourist attractions
- Parks and recreational areas
- Student dormitories and educational institutions
- Pedestrian passages and public walkways
Service & Support
- Comprehensive security solutions to save time and costs
- Competitive pricing with OEM and ODM services
- Professional technical support and after-sales service
- Custom design shapes and logos (free for large quantities)
- Fast delivery with safe shipping methods
- One-year warranty from delivery date with lifetime technical support
- 24-hour online service with 8-hour response guarantee
Frequently Asked Questions
Q1. What is your terms of packing?
A: Protective film wrapping, followed by neutral cartons, and finally standard export wooden cases for perfect protection.
Q2. What is your terms of payment?
A: 100% payment before shipment; or 50% T/T deposit with 50% balance before delivery. Photos/videos of products and packages provided before final payment.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF terms available.
Q4. How about your delivery time?
A: Generally 7-9 working days after receiving advance payment. Specific timing depends on items and order quantity.
Q5. Can you produce according to the samples?
A: Yes, production available based on your samples or technical drawings. We can create molds and fixtures as needed.
Q6. What is your sample policy?
A: Samples available from ready stock, with customers covering sample cost and courier charges.
Q7. Do you test all your goods before delivery?
A: Yes, 100% testing conducted before every delivery.
