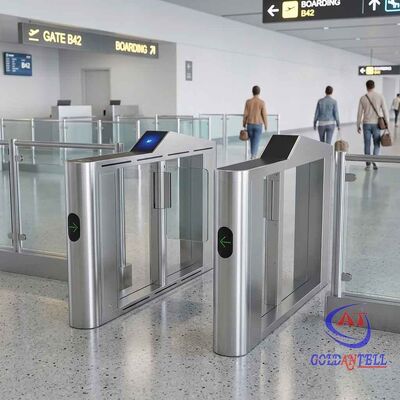

High-Security Brushless Servo Motor Airport E-gate AI Anti-tailgating Speed Gate for Border Control and Customs Security CE
| 通過速度 | 35-40人/分 | 表面銀行 | 20~30のたくさんのPC |
|---|---|---|---|
| サイズ | L1500*W200*H1000mm | 材料 | 304 ステンレス鋼 |
| 電源 | AC100V-240V | 動作温度 | -45°C-60°C |
| タイプ | 全自動 |
High-Security Brushless Servo Motor Airport E-gate AI Anti-tailgating Speed Gate for Border Control and Customs Security CE
Description Of Security Access Gates
- High-Security Brushless Servo Motor: Ensures robust and reliable performance for critical border control applications.
- AI Anti-tailgating Technology: Prevents unauthorized access by detecting and blocking follow-through attempts.
- CE Certified: Meets international safety and quality standards, providing peace of mind for security professionals.
- Tailored for Border Control and Customs: Specifically designed to meet the stringent requirements of airport e-gates and customs security.
Technical Data Of Security Access Gates
| Cabinet dimension | 1500 (L) x 200 (W) x 1000 (H) mm |
|---|---|
| Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Flap opening/closing time | 0.6s |
| Stretching-out flap length | 285 mm |
| Access mode | single in/out or Bidirectional |
| Optimal flow rate | 40 persons/min (open), 25-30 persons/min (closed) |
| Reset time after break down | default 10s, can be changed to fit different demands |
Features Of Security Access Gates
- The passing time is adjustable
- Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm
- The bicycle delay function: prevent the gate from hitting the bicycle
- Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people
- The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass
- Various control functions: external button, remote control, bar code, IC or ID, etc
Functions Of Security Access Gates
- Smart card reader compatible with a variety of card such as IC and ID card
- LED gate direction indicator that displays the current operational state to pedestrian. Green arrow for entry free, Red cross for passage locked
- Can be expanded to automatic identification system, realizing function of access control, pedestrian flow control, attendance check or fare collection
- Equipped with a couple of infrared photocell, alarm at unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian
- Equipped with international standard electrical interface, can be easily integrated with other R/W device, also can be controlled and management through remote supervision computer
Classification Of Security Access Gates
Vertical shape
Bridge shape: this model
Pillar shape (or tube type)
Single motor and Double motor: single motor (suitable for single passageway and multiple passageway); Double motors (suitable for multiple passageways)
Application Of Security Access Gates
Service Of Security Access Gates
- Security solution provider, can help you save time and costs
- Good quality with competitive price, offer OEM and ODM service
- Professional technical supports and great after-sales service
- Custom design shape and logo, for large amount, custom logo available for free
- Fastest delivery and safe shipping way
- Warranty: One year Warranty, from the date of delivery, a lifetime technical support
- Feedback quickly: 24 hours online service and reply your inquiry within 8 hours. We could provide Online supports for you when need supports on testing
Packing Of Security Access Gates
- Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
- Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging
- To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided
