42=Custom Branding Pedestrian Speed Gate QR NFC Access Control Sliding Turnstile for Exhibition Center Public Lobby CE
商品の詳細
| 作業環境 | 屋内/屋外（避難所） | 電源 | AC100V-240V |
|---|---|---|---|
| サイズ | 1400*300*1000mm | コミュニケーション | RS485かTCP/IP |
| 通路幅 | 600mm | 材料 | 304 ステンレス鋼 |
| フラップの開閉時間 | 0.6秒 | 駆動モーター | 標準 DC 24V ブラシ モーター (ブラシレスまたはサーボ モーターのオプションが利用可能) |
| ハイライト | Custom Branding Speed Gate Turnstile,QR NFC Access Control Turnstile,Pedestrian Sliding Turnstile for Exhibition |
||
製品の説明

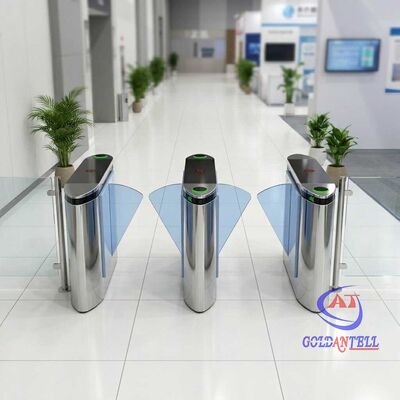

Custom Branding Pedestrian Speed Gate with QR/NFC Access Control
CE-certified sliding turnstile gate designed for exhibition centers, public lobbies, and high-traffic areas with custom branding options.
Product Overview
Advanced biometric turnstile system compatible with multiple access control technologies for secure pedestrian management.
- Compatible with face thermal detection, NFC/RFID cards, QR code/ticket scanners, ESD testers, and fingerprint readers
- Optional LCD screen for enhanced system functionality
- High flow rate with advanced anti-tailgate security features
- Available in single core (single movement) or dual core (double movement) structures
- Single wing or double wings configurations for various lane widths
- Dual protection with mechanical and infrared anti-pinch functions
Key Features & Functions
- Rapid identification technology for magnetic cards, barcode cards, ID cards and IC cards
- Maintenance-free DC brushless motor
- Auto-lift-arm function with alert when power is restored
- Auto-drop-arm function (default) or free passing option when power is off
- Automatic reset function with adjustable timing (1-60 seconds)
Technical Specifications
| Specification | Details |
|---|---|
| Cabinet dimensions | 1400 (L) × 300 (W) × 1000 (H) mm |
| Cabinet material | 304 stainless steel (SUS316 available as custom option) |
| Lane length | Standard 600mm (customizable up to 900mm) |
| Flap opening/closing time | 0.6 seconds |
| Passing direction | Single in/out or bidirectional options |
| Drive motor | Standard DC 24V brush motor (brushless or servo motor options available) |
| Access readers | RFID cards, fingerprint, barcode, ticket scanners |
| Optional features | LED light, coin controller, counter, sound alarm, speakers |
| Durability | 3 million normal running cycles |
| Reset time after breakdown | Default 5 seconds (adjustable) |
| IR sensors | Standard 6 pairs (8 or 10 pairs available) |
Design
Key Advantages
- Professional OEM/ODM design services available
- CE certified with successful European government project experience
- Experienced sales team with over 4 years in turnstile industry
Packaging & Delivery
- Inner carton packaging with two outer options: crate package or closed wooden package
- Standard lead times: <10pc in 7 working days; >50pc in 10-15 working days
- Customized products require additional 2-3 working days
Ideal Applications
Service & Support
- Comprehensive security solutions to save time and costs
- Competitive pricing with OEM/ODM services
- Professional technical support and after-sales service
- Custom design shapes and logos available (free for large orders)
- Fast delivery with secure shipping methods
- 1-year warranty from delivery date with lifetime technical support
- 24-hour online service with 8-hour response guarantee
Frequently Asked Questions
What are your packing terms?
Goods are first protected with film, then placed in neutral cartons, and finally packed in standard export wooden cases for optimal protection.
What are your payment terms?
100% payment before shipment, or 50% deposit with 50% balance before delivery. We provide product photos/videos before final payment.
What are your delivery terms?
Available options: EXW, FOB, CIF.
What is your delivery time?
Standard lead time is 7-9 working days after receiving payment. Exact timing depends on product type and order quantity.
Can you produce according to samples?
Yes, we can manufacture based on your samples or technical drawings, including creating necessary molds and fixtures.
What is your sample policy?
Samples available if we have stock, with customer covering sample and courier costs.
Do you test all goods before delivery?
Yes, we perform 100% testing before shipment.
