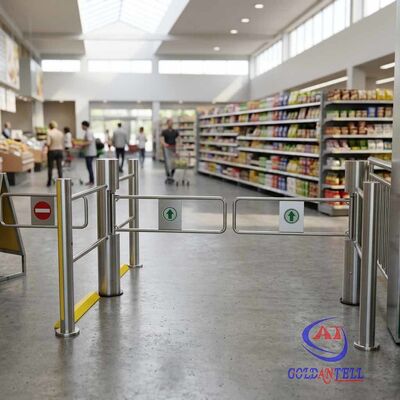

ADA Compliant Automatic Retail Swing Gate SUS304 Barrier for Supermarket Wheelchair and Shopping Trolley Access CE
商品の詳細
| 材料 | 304ステンレス製steel/316ステンレス鋼 | 正味重量 | 85KG/セット |
|---|---|---|---|
| 総重量 | 90KG/セット | 製品サイズ | 直径：メインポール：Φ168mm 高さ：1000mm |
| 動作電圧 | AC220±10%V 50±10%HZ | 通路幅 | 450-850mm |
| 振動腕の角度 | 180度 | 動作速度 | 開閉時間1秒 |
製品の説明
ADA Compliant Automatic Retail Swing Gate
Product Overview
SUS304 Barrier for Supermarket Wheelchair and Shopping Trolley Access CE Certified
- Automatic Opening: Instantly opens for wheelchair and shopping trolley access
- One-Way Operation: Ensures smooth flow in one direction
- Quick Response: Opens within 0.6 seconds for efficient passage
- CE Certified: Meets European safety standards
- Brushless Motor: Reliable and energy-efficient design
Technical Specifications
| Control Methods | Push button, RFID card, fingerprint recognition |
| Working Voltage | AC220±10%V 50±10%HZ |
| Dimensions | Diameter: Φ168mm, Height: 1000mm |
| Passage Width | 450-850mm |
| Swing Arm Angle | 180 degrees |
| Direction | Single or bi-directional (optional) |
| Operation Speed | 1 second opening/closing time |
| Capacity | 40 persons/min (open), 25-30 persons/min (closed) |
| Durability | 3 million cycle lifespan |
| Operating Environment | Indoor/outdoor (with cover) -10℃～70℃ |
| Motor | DC24V brush motor |
Advanced Features
- Adjustable pillar height and telescopic arm length with material options
- Infrared reset and anti-pinch functions with sound/light alarms
- Configurable as normally open or closed for different environments
- Bidirectional operation with infrared sensing for entry/exit control
- Programmable via main control board buttons
- Mechanical and infrared anti-pinch protection with automatic reset
- Automatic locking for unauthorized access attempts
- Collision avoidance protection for swing arms
- Adjustable automatic reset timing (1-60 seconds)
- Compatibility with access control, biometric, and ESD systems
- Remote management capability via computer
- Meets all fire safety requirements
Applications
Public Spaces
- Supermarkets & Retail Stores
- Transportation Hubs (Subway, Airports, Stations)
- Cultural Venues (Libraries, Museums, Exhibition Halls)
- Recreational Areas (Parks, Stadiums)
- Residential & Office Buildings
Commercial & Institutional
- Hotels & Hospitality
- Factories & Industrial Facilities
- Financial Institutions (Banks)
- Healthcare Facilities (Hospitals)
- Educational Institutions
- Correctional Facilities
Installation Examples
Residential Complex Entrance Installation
Urban Street Application
Customization Options
- Custom appearance design available
- Stainless steel thickness options: 1.2-2.0mm
- Material grades: 304 or 316 stainless steel
- Surface finishes: satin, polished, anti-fingerprint, frosted, electroplated, or baked
